Fire Monitors – DF3000 Trailer Monitors

Made in the UK

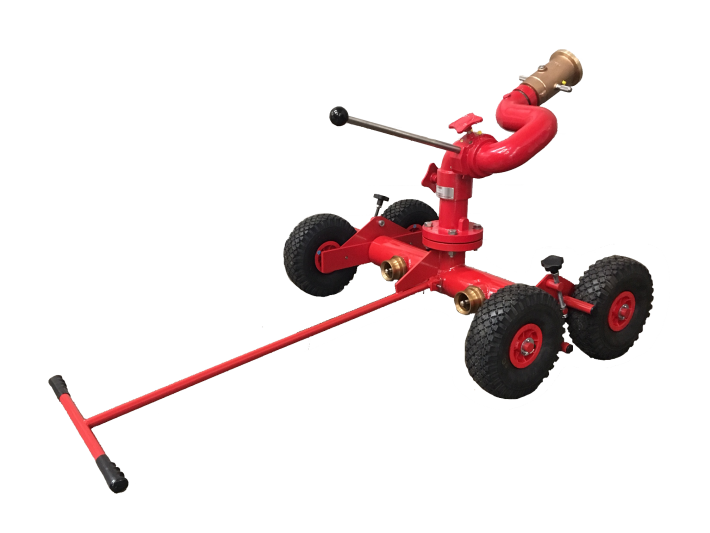

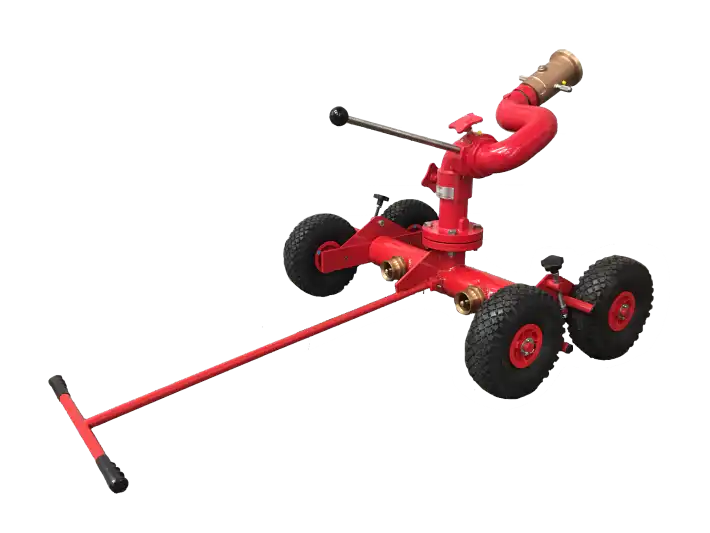

The Delta DF3000 Wheeled Monitor incorporates all the advantages of a low-friction single waterway fire monitor with the added benefit of one-man wheeled manoeuvrability.

Add to Quote
The Delta DF3000 Wheeled Monitor incorporates all the advantages of a low-friction single waterway fire monitor with the added benefit of one-man wheeled manoeuvrability. The full 3” waterway provides flows of up to 3000 LPM (795 GPM) for maximised performance and incorporates the Delta DNB2600 jet/spray monitor nozzle. With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, the DF3000 is manufactured in corrosion resistant materials and ideally suited for use on Petrochemical Refineries, Airports and any other high risk applications. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position allowing unmanned operation. The DF3000 Trailer Monitors are available in a number of formats including stainless steel chassis versions for extreme environment use and models fitted with Delta’s new UC2600 Ultra-Compact Monitor. The new and improved quick acting break release system provides easy access to break controls and minimises wear on the wheel rims. The dual purpose handle serves as both a stabilising outrigger during use and also aids manoeuvrability via a tilt and steer function. Twin inlets fitted with any International adaptors allow for compatibility with existing hoselines.

Description

The Delta DF3000 Wheeled Monitor incorporates all the advantages of a low-friction single waterway fire monitor with the added benefit of one-man wheeled manoeuvrability. The full 3” waterway provides flows of up to 3000 LPM (795 GPM) for maximised performance and incorporates the Delta DNB2600 jet/spray monitor nozzle. With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, the DF3000 is manufactured in corrosion resistant materials and ideally suited for use on Petrochemical Refineries, Airports and any other high risk applications. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position allowing unmanned operation. The DF3000 Trailer Monitors are available in a number of formats including stainless steel chassis versions for extreme environment use and models fitted with Delta’s new UC2600 Ultra-Compact Monitor. The new and improved quick acting break release system provides easy access to break controls and minimises wear on the wheel rims. The dual purpose handle serves as both a stabilising outrigger during use and also aids manoeuvrability via a tilt and steer function. Twin inlets fitted with any International adaptors allow for compatibility with existing hoselines.

Related Products

Monitor Canons – Self Inducing
  • Fire Monitors
  • Foam Systems
Monitor Nozzles – Standard
  • Fire Monitors
  • Foam Systems
Robotic Monitors – Force 80
  • Fire Monitors
  • Foam Systems
Fire Monitors – DP3000 Portable Monitor
  • Fire Monitors

FAQs

The Delta DF3000 Trailer Monitor is a UK manufactured wheeled fire monitor system designed for high flow firefighting in industrial, marine, and petrochemical environments. It is a mobile trailer mounted unit that allows rapid deployment of a high capacity monitor to wherever it is needed on site, providing flexible large scale fire protection. It is designed for single operator use with easy manoeuvrability and fast positioning.

The DF3000 is designed specifically for major fire events due to its high flow capability and long reach performance. It delivers up to 3000 litres per minute through a 3 inch waterway, providing powerful suppression for large scale fires. It also features full 360 degree rotation and adjustable elevation, allowing precise targeting of fire zones. Its trailer based design enables rapid relocation across large or complex sites such as refineries, airports, and fuel storage facilities, making it ideal for perimeter protection and emergency response.

Yes, the DF3000 is fully suitable for foam application. It is commonly configured with foam capable monitor nozzles, including self inducing options, allowing it to deliver aspirated foam for hydrocarbon and flammable liquid fires. This makes it effective for petrochemical, oil and gas, and fuel storage environments where foam coverage is essential for vapour suppression and fire knockdown.
