Fire Monitors - DF4500 Fixed Station Monitor

Fire Monitors – DF4500 Fixed Station Monitor

Made in the UK

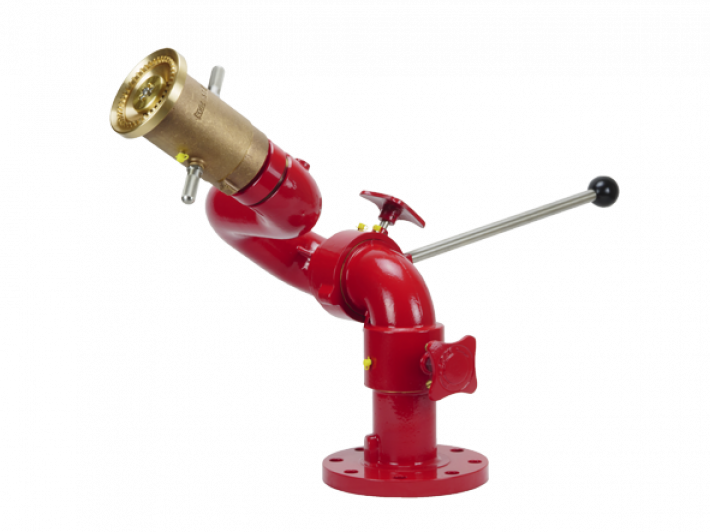

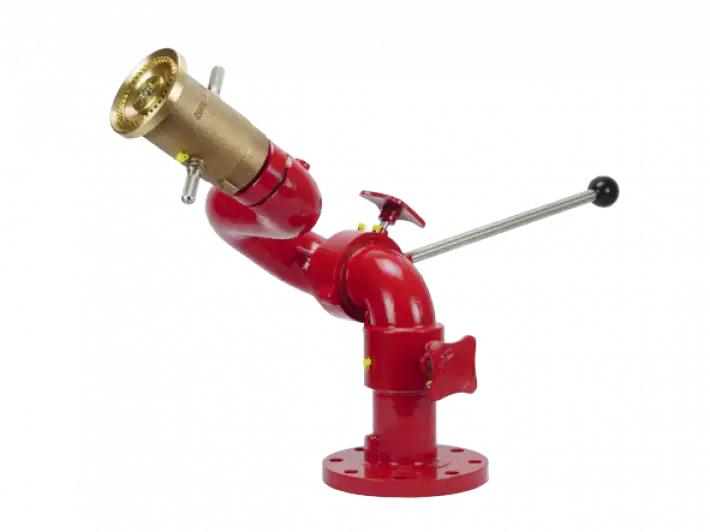

The Delta DF4500 Fixed Station Monitor is manufactured from corrosion resistant brass making it ideal for Marine, Off-Shore and Industrial use.

The DF4500 is available with either 3” or 4” ANSI 150lb Flanged inlets for use on fixed pipework

Add to Quote
  • CategoryFire Monitors, Fixed Station Monitors, Fixed System Hardware, Foam Systems
The full 3” waterway provides flows of up to 4500 LPM (1190 GPM) and can be used with a choice of Delta Monitor Nozzles and Canons to suit a wide range of specific applications (available separately). With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, the DF4500 is infinitely manoeuvrable via the stainless steel tiller handle. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position. Available in a choice of either Lever-Operated or Geared models the DF4500 is easily operated under pressure and maximises performance through an efficient flow-engineered design.
View Data Sheet

Description

The full 3” waterway provides flows of up to 4500 LPM (1190 GPM) and can be used with a choice of Delta Monitor Nozzles and Canons to suit a wide range of specific applications (available separately). With full 360° rotation capabilities and adjustable elevation of 90° above and 60° below the horizontal, the DF4500 is infinitely manoeuvrable via the stainless steel tiller handle. Vertical and Horizontal quick-action locks allow the operator to fix the monitor swiftly to any position. Available in a choice of either Lever-Operated or Geared models the DF4500 is easily operated under pressure and maximises performance through an efficient flow-engineered design.
View Data Sheet

Related Products

Variable Round The Pump Proportioner

  • Fixed Foam Equipment
  • Foam Systems

Monitor Canons – Standard & Blabber Mouth

  • Fire Monitors
  • Foam Systems

Fire Monitors – DF2000 Foam Trailer Monitor

  • Fire Monitors

Fire Monitors – UC2600 Oscillator Unit

  • Fire Monitors
  • Foam Systems

Fire Nozzle – Attack 100 SBC Pro

  • Fire Nozzles

Flowmaster 250 MK2

  • Flowmeters
  • Water Delivery

Flowmaster 250 MK2 Data Logger

  • Flowmeters
  • Water Delivery

Fire Nozzle – Attack 500 Pro

  • Fire Nozzles

Fire Hose – Wildfire Soaka Hose

  • Fire Hoses
  • Wildfire

DO9 (Long pattern) Jet/Spray Nozzle – Industrial Light Alloy

  • Fire Nozzles

Attack Pro branchpipes

  • Fire Nozzles
  • Portable Foam Equipment

Storz (German)

  • Fire Fittings

FAQs

The DF4500 is a fixed-station fire monitor built from corrosion-resistant bronze. It has a 3-inch waterway and delivers flows up to 4,500 LPM (1,190 GPM) for high-capacity water or foam applications.

The monitor offers full 360° rotation and elevation adjustment from 90° above to 60° below horizontal. Quick-action locks secure the position, and an optional oscillator unit can provide automated sweeping. The DF4500 monitor accepts Delta monitor nozzles and cannons, including fluorine-free foam applicators.

Standard inlets are 3 in or 4 in ANSI 150-lb flanged (PN16 on request). The body is painted red (RAL 3002) and uses rotation bearings for durability.
